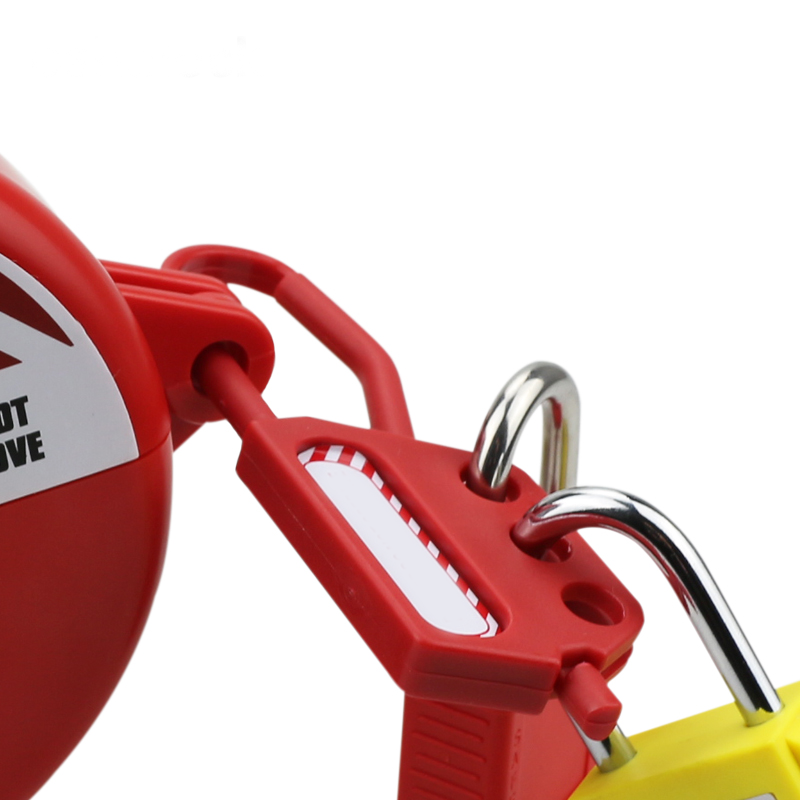

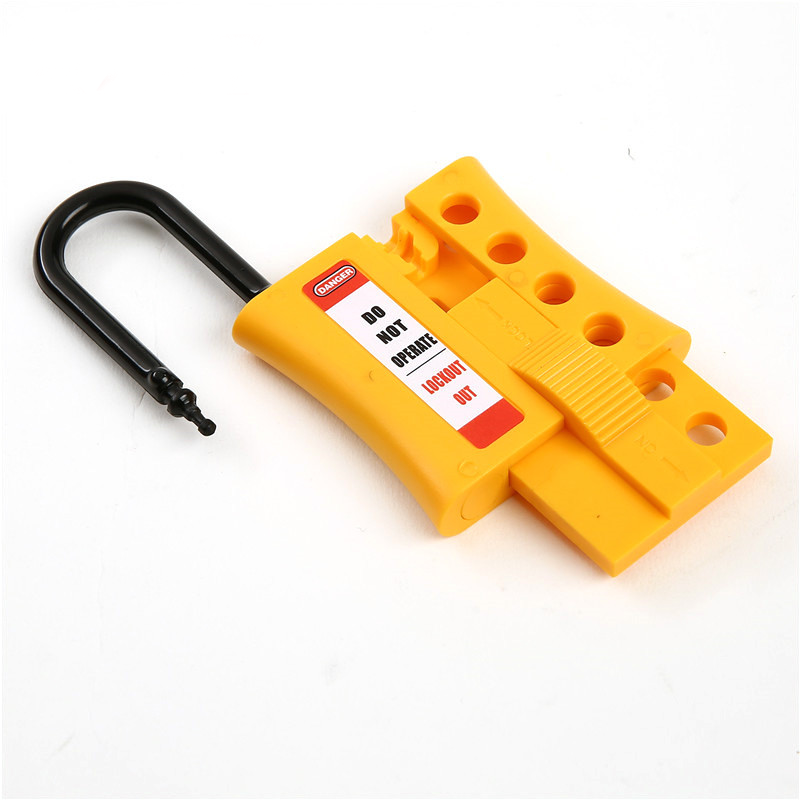

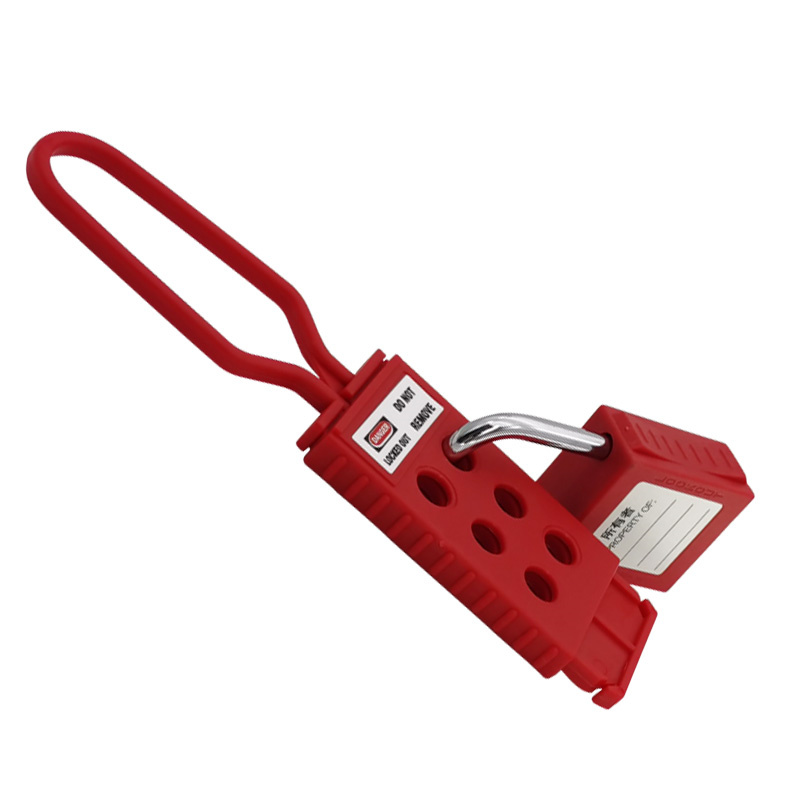

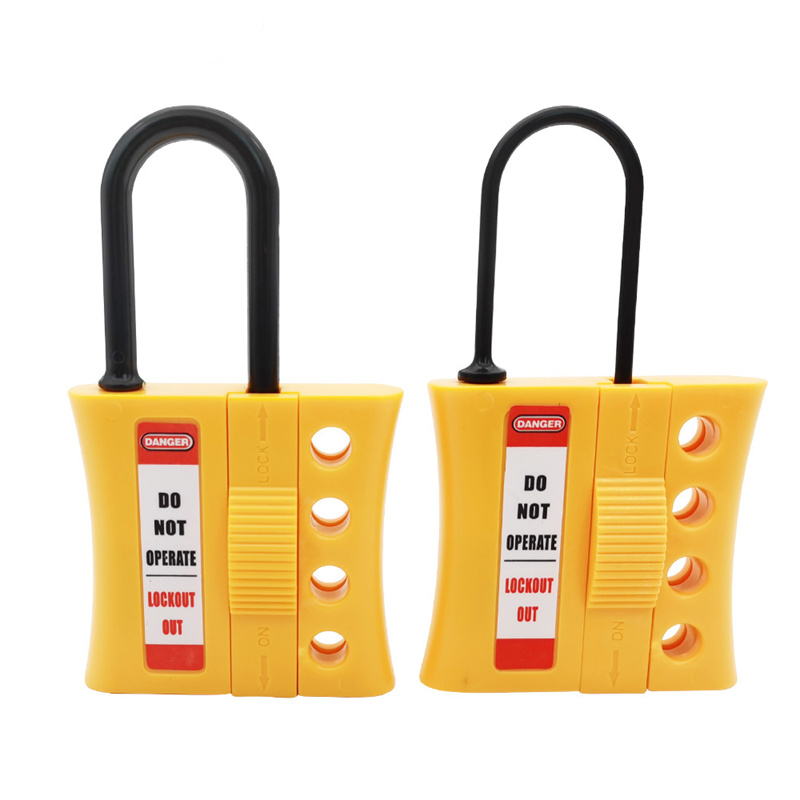

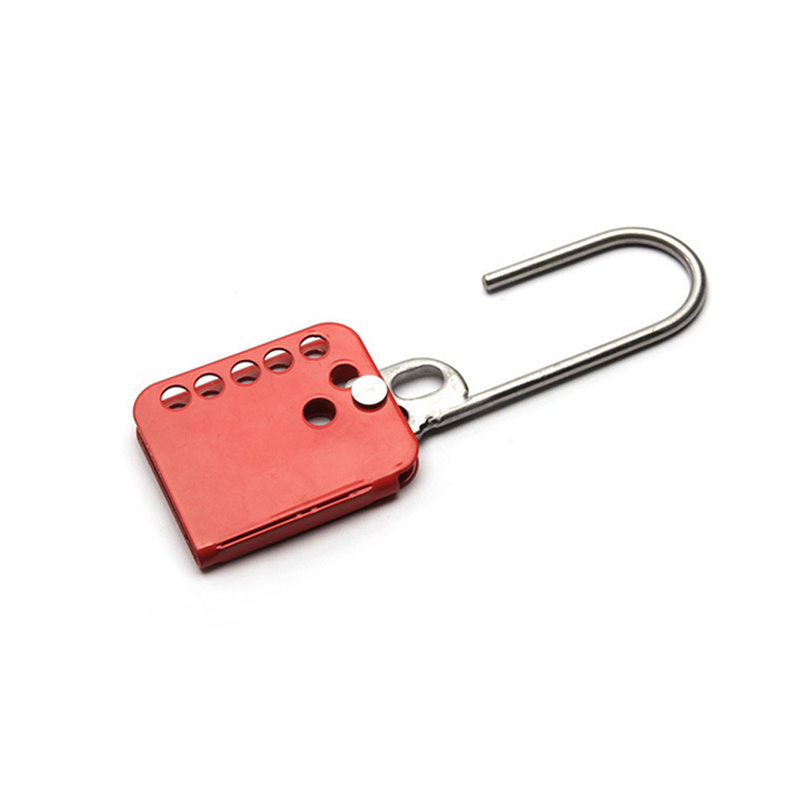

QVAND Nylon Safety Lockout Hasp For Multiple Padlocks Locked
The lockout hasp is placed through the isolating point and each person carrying out maintenance or service work attaches and locks in place their own unique individually keyed padlock through the lockout hasp.
M-D15: Overall size: 61 mm x 71 mm, shackle diameter 3 mm, accept up to 4 padlocks.
M-D16: Overall size: 61 mm x 108 mm, shackle diameter 6 mm, accept to 4 padlocks.
-

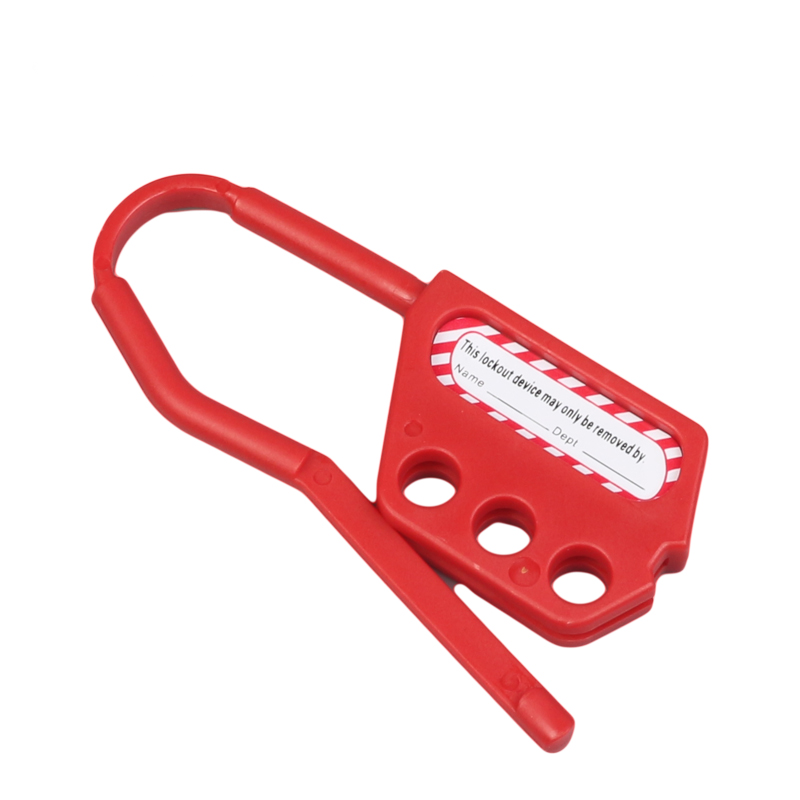

3-Holes Nylon Safety Hasp Lockout Qvand M-D12 For Safety Padlock Locking
Description:
a) Made from PP.
b) Non-conductive body, applied to lock out electric power isolation with high requirements on corrosive or explosion-proof places.
c) Allow multiple padlocks to be used when isolating one energy source.
d) Usage: pull and press the side.
e) Lock holes: 9 mm diameter.
f) Body size: 173x43x6mm.
g) Lightweight and compliance with all OSHA requirements.
h) Red available, and other colors can be OEM.
i) Warning sign stickers can be customized.
-

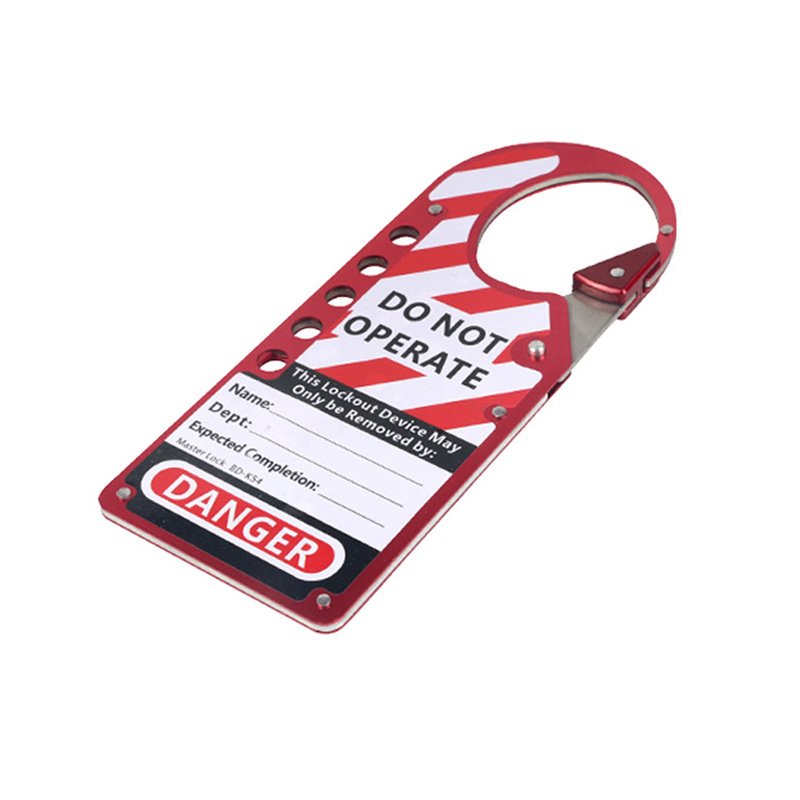

Snap-On Aluminium Safety Lockout Hasps QVAND Padlock Key Locking Hasps
Safety lockouts allow multiple padlocks to be used when isolating one energy source.
It is widely used in industrial and underground working area. It greatly guarantees workers’ safe.
A. Material: aluminum alloy
B. Combined hasp and tags to improve, the applicability, high temperature resistance, tag can be used in various environments.
C. Write-on label on both sides.
-

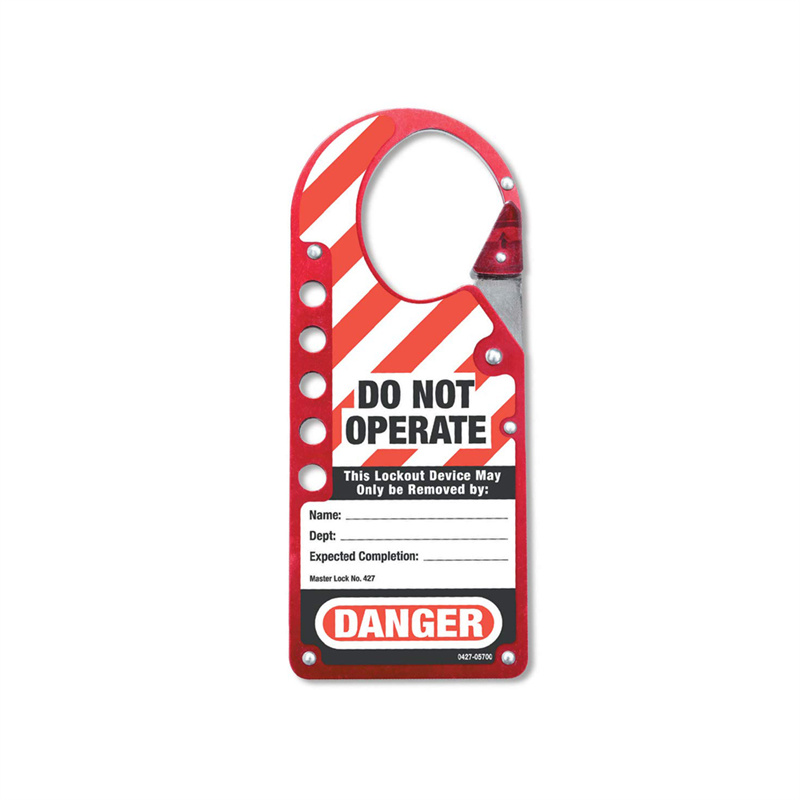

Red Writable Labeled Snap-On Aluminum 8 Holes Safety Padlock Tagout Hasp
M-D25, Overall size:73mm*178mm

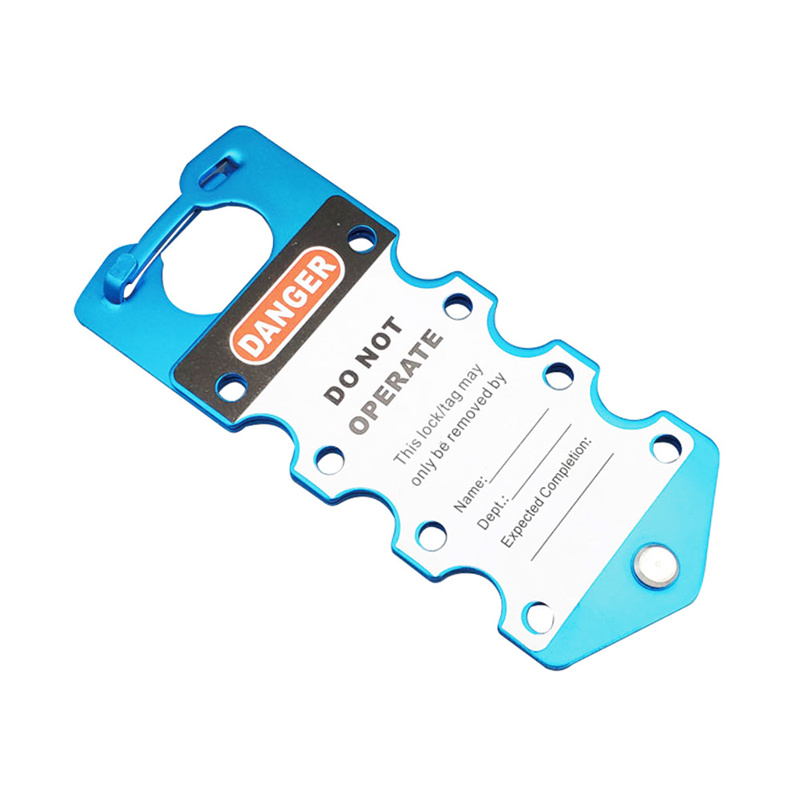

Aluminum Lockout Hasp
a) Spring type bayonet, more convenient to use.
b) The main body is anodized aluminum, and the inside is made of stainless steel. Which is more corrosion-resistant.
c) Multi-manager.
d) Handwritten security label.
Recommend collocation (it is recommended to use together with insulated safety padlock and safety tags).
-

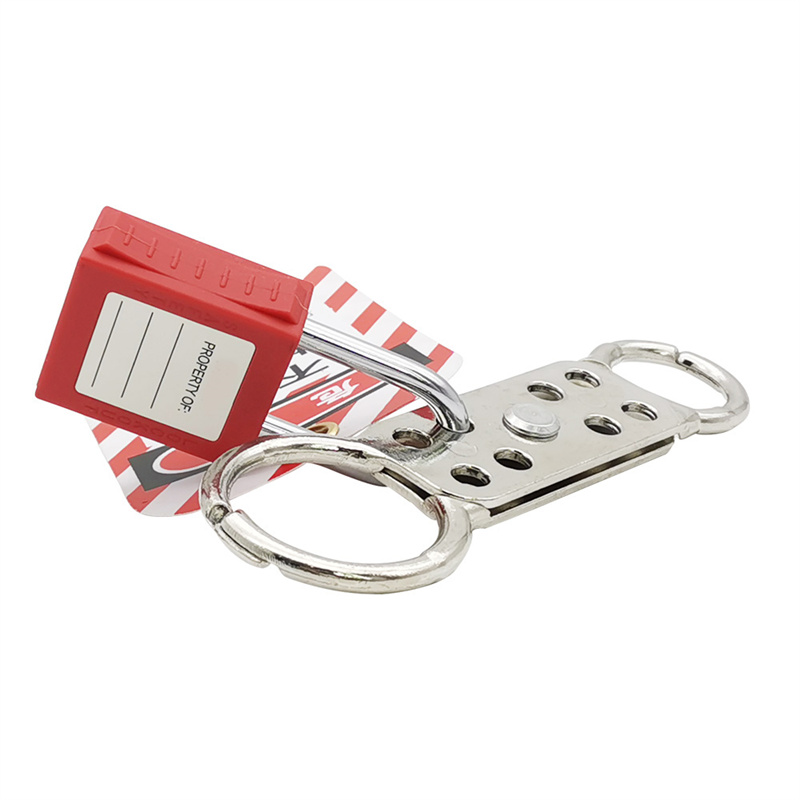

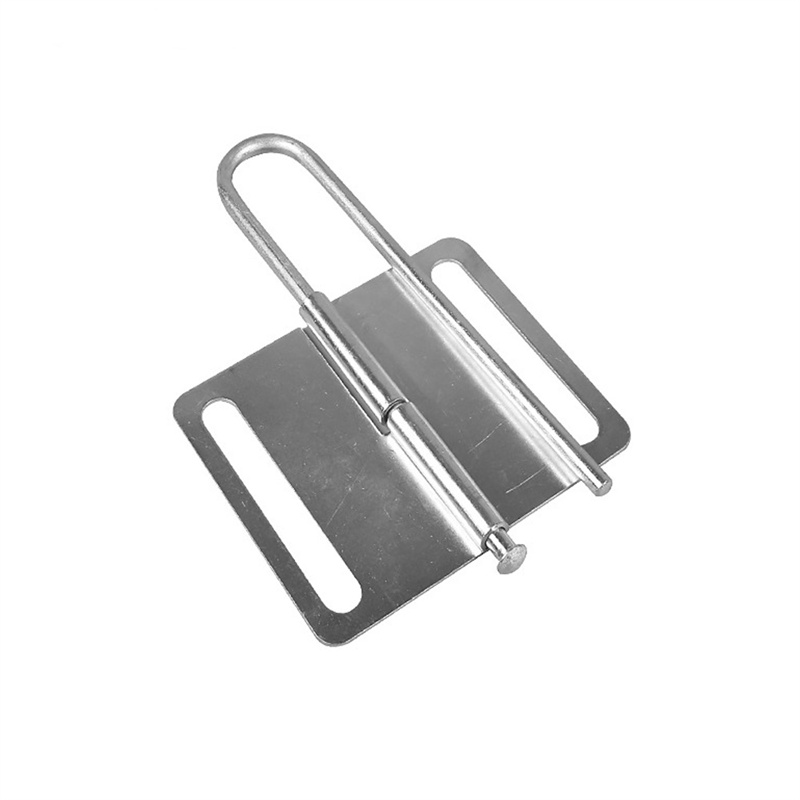

6 Padlock Lockout Hasps QVAND Industrial Safety Lockout Hasp
M-D32 is made of hardened steel and anti-rust coating on the surface.
Anti-skid design,strong and durable.
Long hole designs to achieve the multiple people to management one energy source.
It accept up to 10 padlocks.
Shackle size: 86 vertical clearance.
Overall size: 40 mm x 176 mm.
-

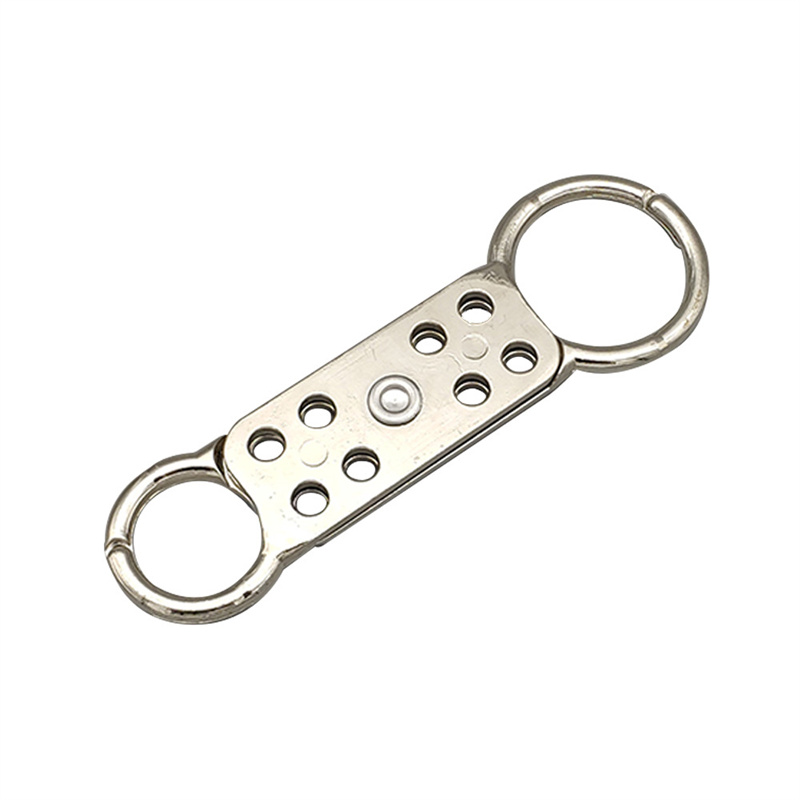

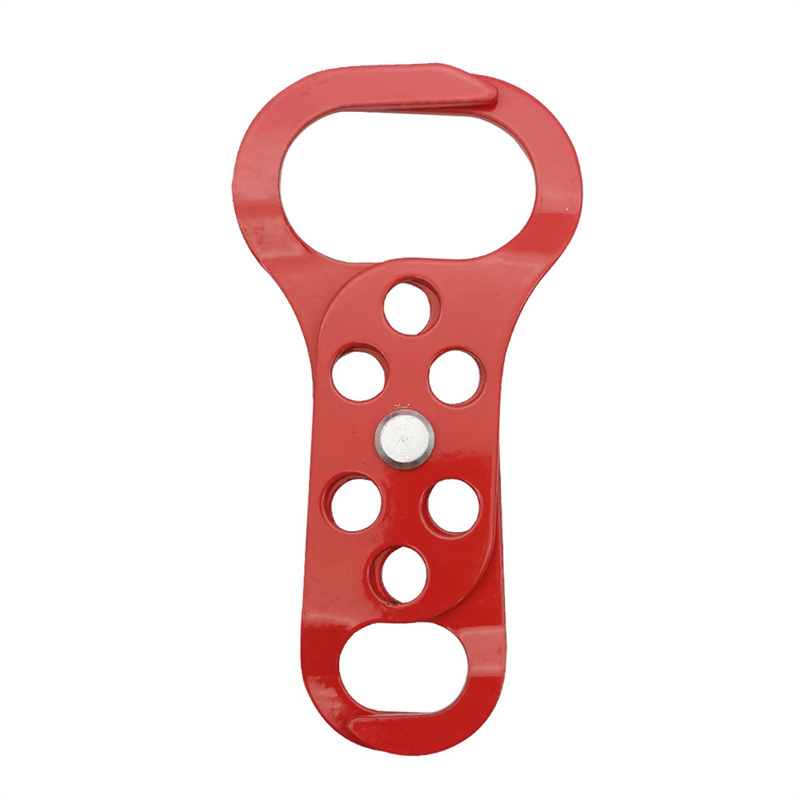

Steel Butterfly Lockout Hasp QVAND M-D27 7 Holes Padlock Master Lock Hasp
Butterfly anti-skid lock.
M-D32 is made of hardened steel and anti-rust coating on the surface.
Anti-skid design,strong and durable.
Long hole designs to achieve the multiple people to management one energy source.
It accept up to 10 padlocks.
Shackle size: 40mm vertical clearance.
Overall size: 110 mm x 58 mm.
-

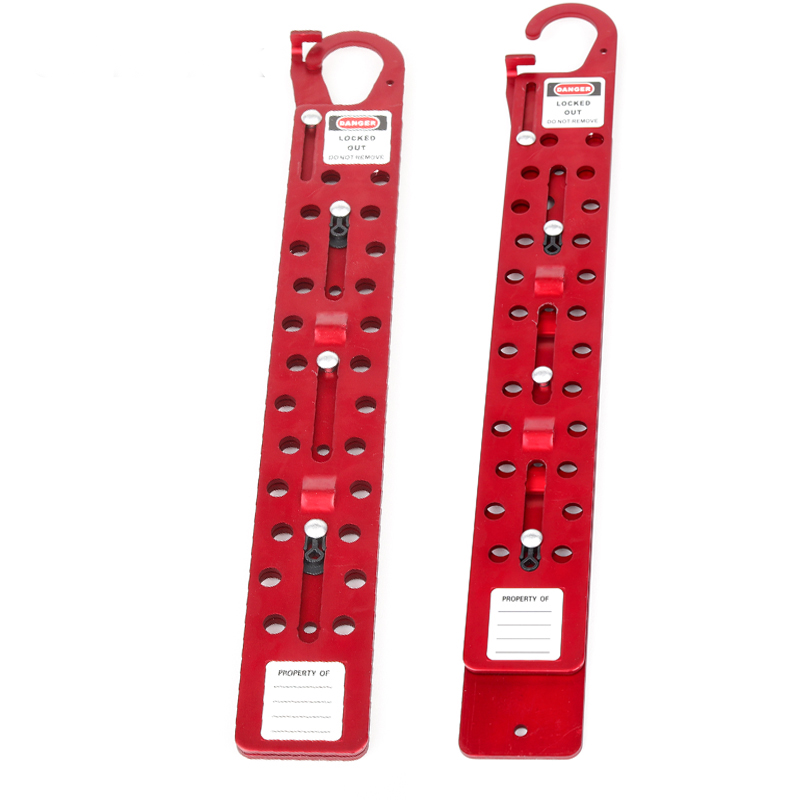

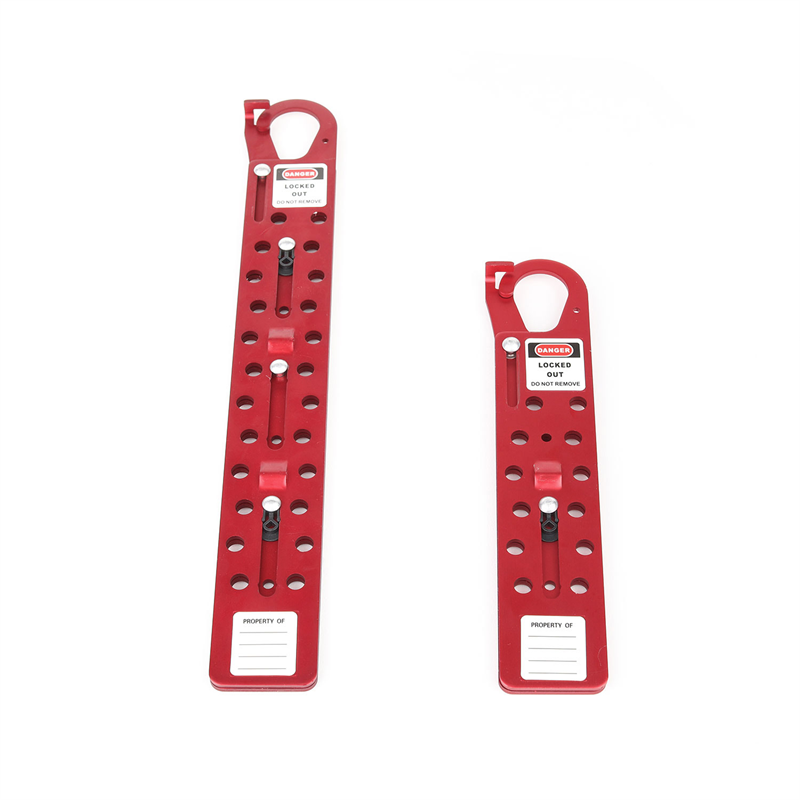

Aluminum Lockout Padlock Hasp Qvand Holds Op To 12 Padlocks
Size: Lock hole diameter 8mm.
Accommodate 12 padlocks or 24 padlocks.
1. Lock body material
Made from aluminum alloy, anodized surface treatment is resistant to high temperature, no spark and corrosion.2. Multi-management
Multiple hole (12 padlock holes or 14 padlock holes), allow multiple workers to lock the equipment at the same time, the device equipment can not be open before the last worker unlock. After repeated trials, it is concluded that safety padlock with 8.5mm diameter shackle most suitable for this aluminum buckle lock.3. Customized service
With rewritable label, resistant to high temperature,can wipe out repeatedly and customize different language. -

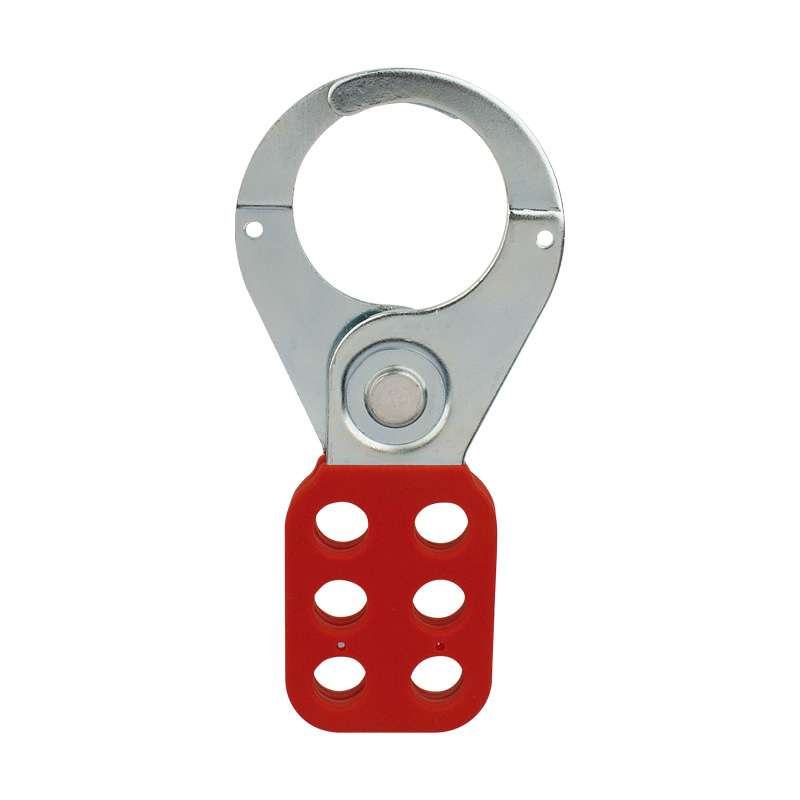

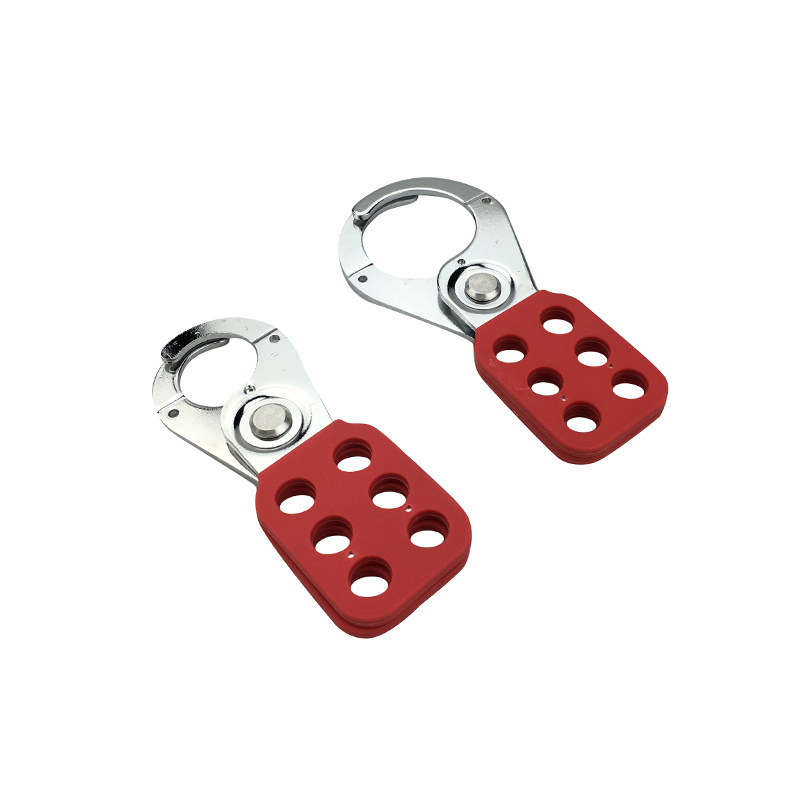

Loto Safety Lockout Hasp QVAND M-D01 Snap 6 holes safety Hasp
M-D01, Jaw size 1″(25mm), accept up to 6 padlocks.

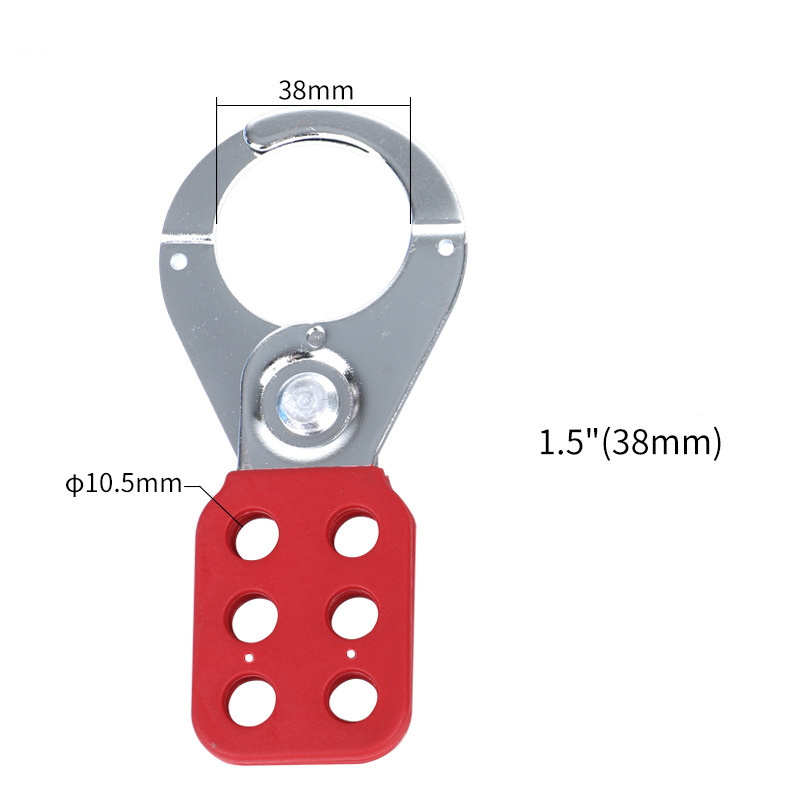

M-D02, Jaw size 1.5″(38mm), accept up to 6 padlocks.
Steel Lockout Hasp
a) Handle is made from PA, and lock shackle is made from nickel plated steel with red plastic or vinyl coated body, rust proof.
b) Allow multiple padlocks to be used when isolating one energy source.
c) Lock holes: 10.5mm diameter,six hole design.
d) Jaw size: 1’’(25mm) & 1.5″ (38mm).
e) Colors of handle can be customized.
-

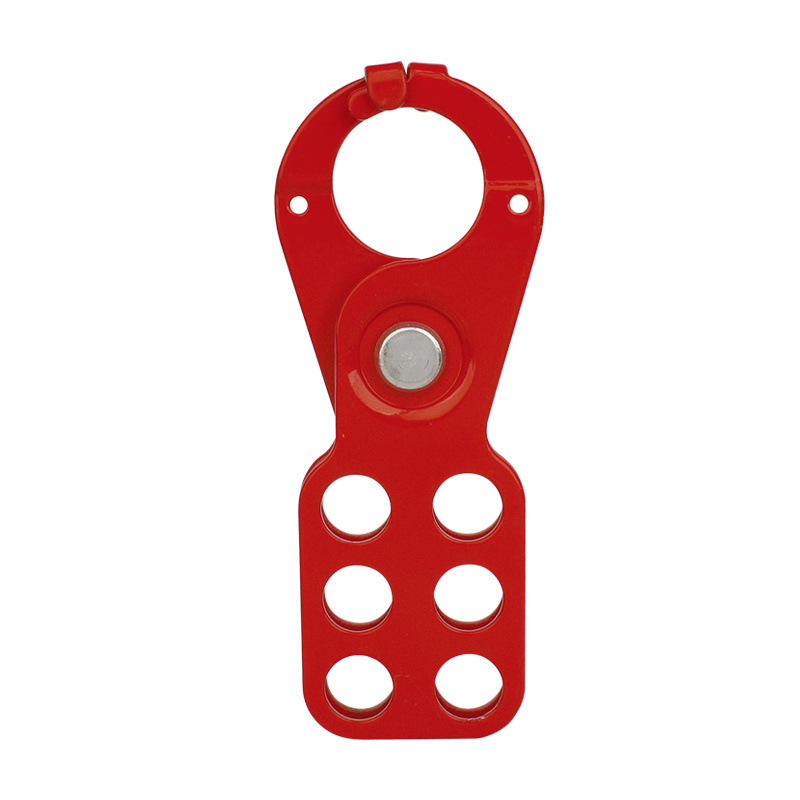

Safety Steel Hasp Group Lockout QVAND M-D03 For 6 Padlocks Hasp Hook
M-D03, 1″(25mm)steel lockout hasp, Steel hook with plastic coated body.
115mm lengthx45mm width.
M-D04, 1.5″(38mm)steel lockout hasp, Steel hook with plastic coated body.
130mm lengthx60mm width.
Steel lockout hasp with tab safety lockout hasp 6 hole 1″ diameter LOTO device.
1. Rust proof steel with colored plastic or epoxy coated body; Handle is made from PA, and lock shackle is made from nickel plated steel with red plastic or vinyl coated body, rust proof.
2. Allow multiple padlocks to be used when isolating one energy source.
3. Steel lockout hasp includes tamper-proof interlocking tabs to prevent unauthorized opening.
4. Lock holes: 4.14” (10.5mm) diameter.
5. Jaw size: 1” (25mm) ;&1.5″(38mm).
6. Multiple colors optional; Color of handle can be customized.
7. Durable, light weight and easy to carry. -

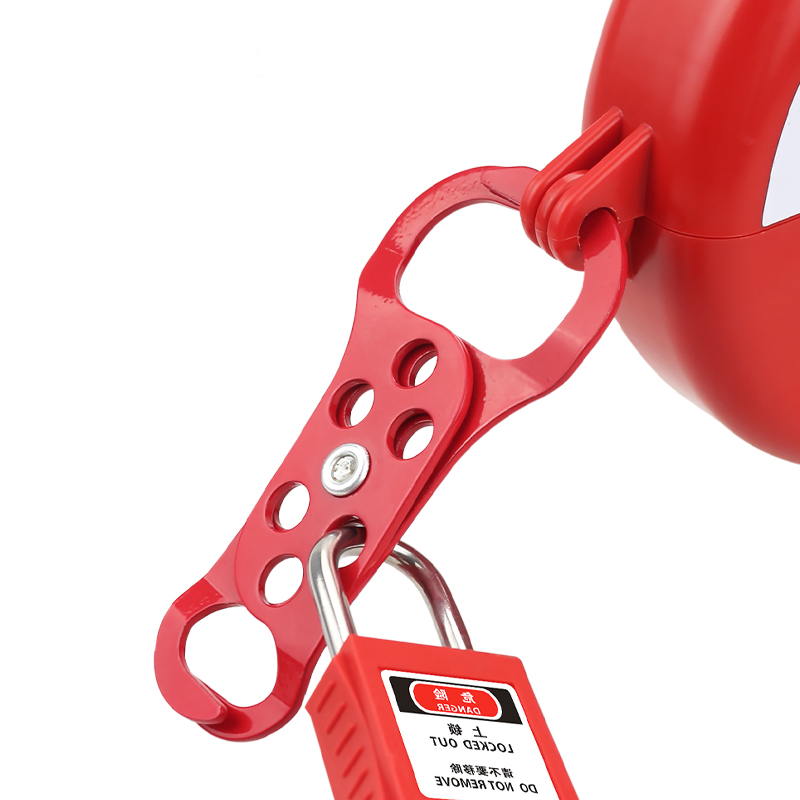

Safety Lockout Hasp Lock Tagout QVAND M-D07 Steel Hasp With Hook
M-D07, jaw size 1″(25mm), accept up to 6 padlocks.
M-D08, jaw size 1.5″(38mm), accept up to 6 padlocks.
Economic Steel Lockout Hasp with Hook.
a) Made from hardened powder coated steel, durable and resist rust.
b) It has a double locking arrangement. Hooks on jaws prevent them to be pulled apart.
c) Lock holes: 12mm diameter.
d) Jaw size: 1’’(25mm) & 1.5″ (38mm).
e) Size: 40mm*10.5mm*147mm.
Process: High temperature spray plastics and treatment.
-

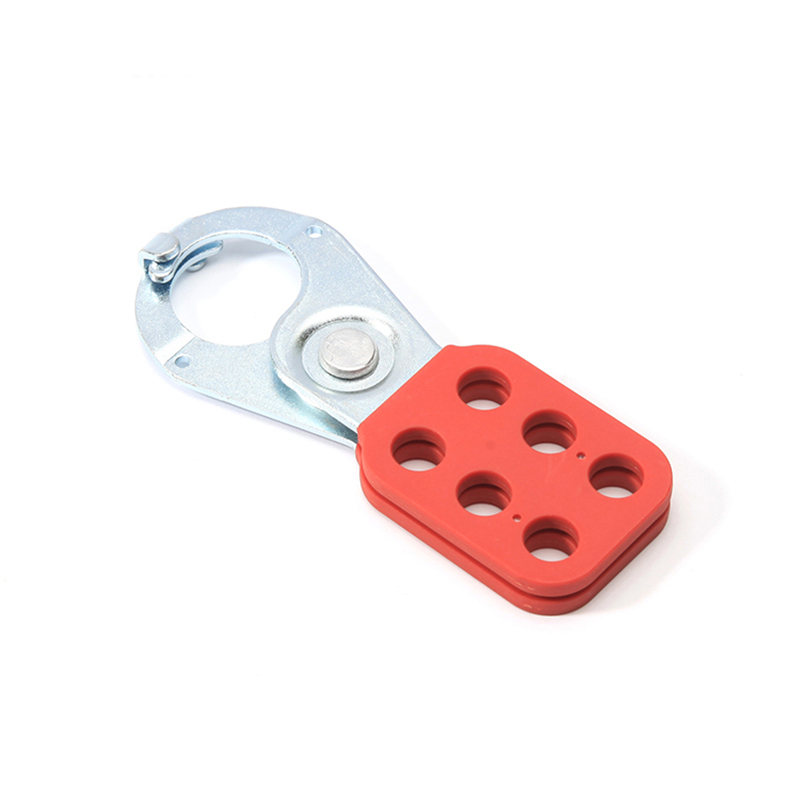

Steel Loto 6 Holes Lockout Hasp Qvand M-D05 Holds Op To 6 Padlocks
M-D05, jaw size 1“(25mm) accept up to 6 padlocks
M-D06, jaw size 1.5″(38mm), accept up to 6 padlocks
Economic Steel Lockout Hasp with Hook
a) Made from hardened powder coated steel, durable and resist rust.
b) It has a double locking arrangement.Hooks on jaws prevent them to be pulled apart.
c) Lock holes: 12mm diameter.
d) Jaw size: 1’’(25mm) & 1.5″ (38mm).
e) Allow multiple padlocks to be used when isolating one energy source.
f) Colors of handle can be customized.
-

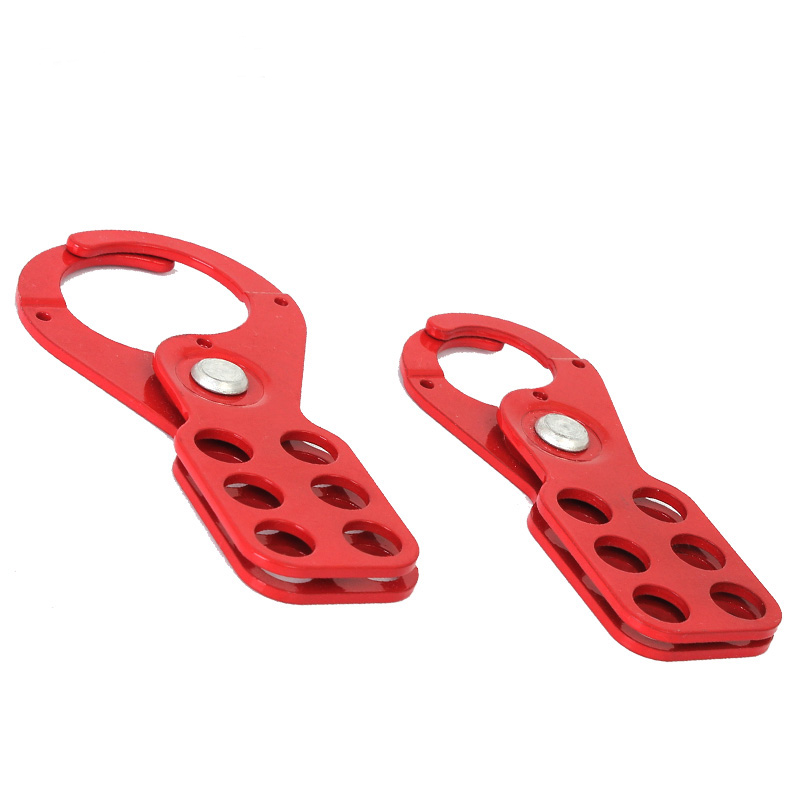

1.5″ Jaw 6 Padlock Aluminum Lock Hasp QVAND M-D09 Industrial Lockout Hasp
DESCRIPTION:
The lock hole is 3/8″ (9.5mm) in diameter. Two jaw sizes available for option:
1″ (25mm) and 1.5″ (38mm). Different colors can be customized, usually red.
M-D09: 1″(25mm, aluminum lockout hasp, accept up to 6 padlocks.
M-D10: 1.5″(38mm), aluminum lockout hasp, accept up to 6 padlocks.
a) Made from surface treated and spark proof aluminum shackle with red nylon coated body.
b) Allow multiple padlocks to be used when isolating one energy source.
c) Lock holes: 10mm diameter.
d) Jaw size: 1’’(25mm) & 1.5″ (38mm).
