Safety Valve Lockout

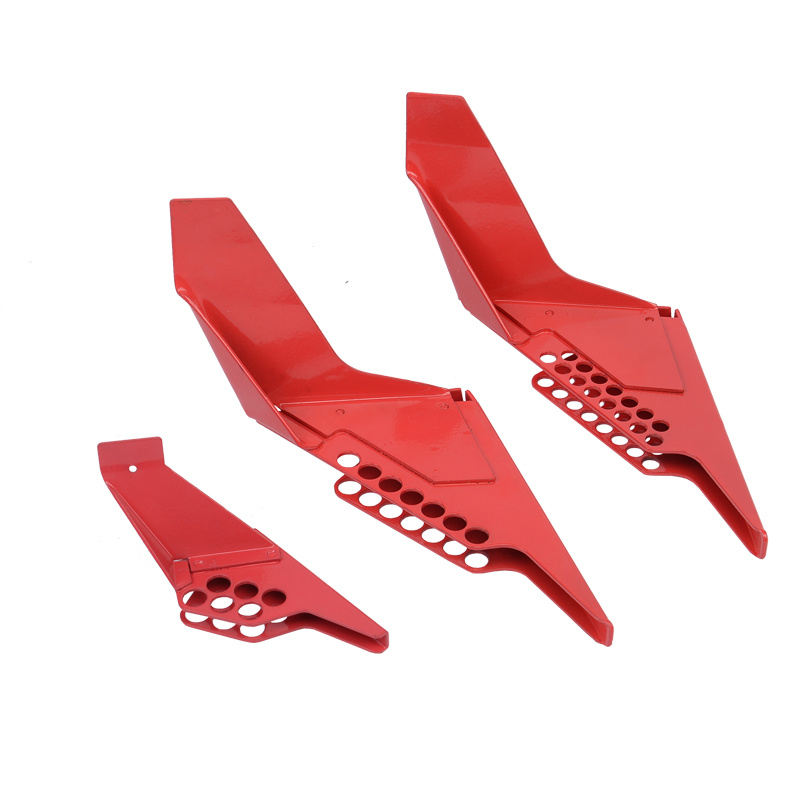

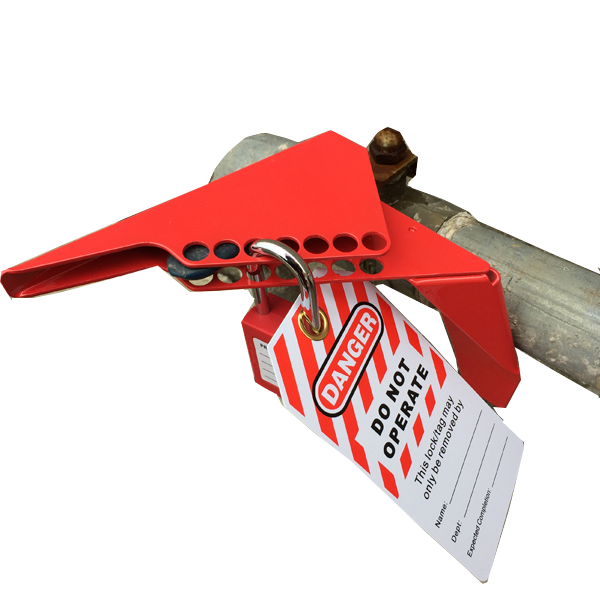

  • Steel Ball Valve Hand Rod Valve Lock QVAND M-H07 Safety Lockout

    Steel Ball Valve Hand Rod Valve Lock QVAND M-H07 Safety Lockout

    Wedge-style ball valve lockout, 1/4in (6.4mm) to 1in (25mm) diameter valves.
    Wedge-style ball valve lockout, 1-1/4in(31mm)to 3in(76mm) diameter valves.

    1) Firm and wear-resistant. It is made of standard steel plate (A3). The surface is treated with high temperature spraying and good rust prevention.

    2) Humanity design. It is devoted to lock the closed right angle turn ball valve, small locks are suitable for the ball valev of DN8-DN50, ball valve sizes from 6.35mm (1/4”) to 25mm (1”), hole diameter is 3/8”.

    3) Multifunction. It is easy to operate and adjust, the card slot is directly jammed into the valve handle, diameter of shackle ≤ 10mm, multiple locks are available.

    4) This ball valve handle lock with a single-piece design locks quarter-turn ball valves in off position.

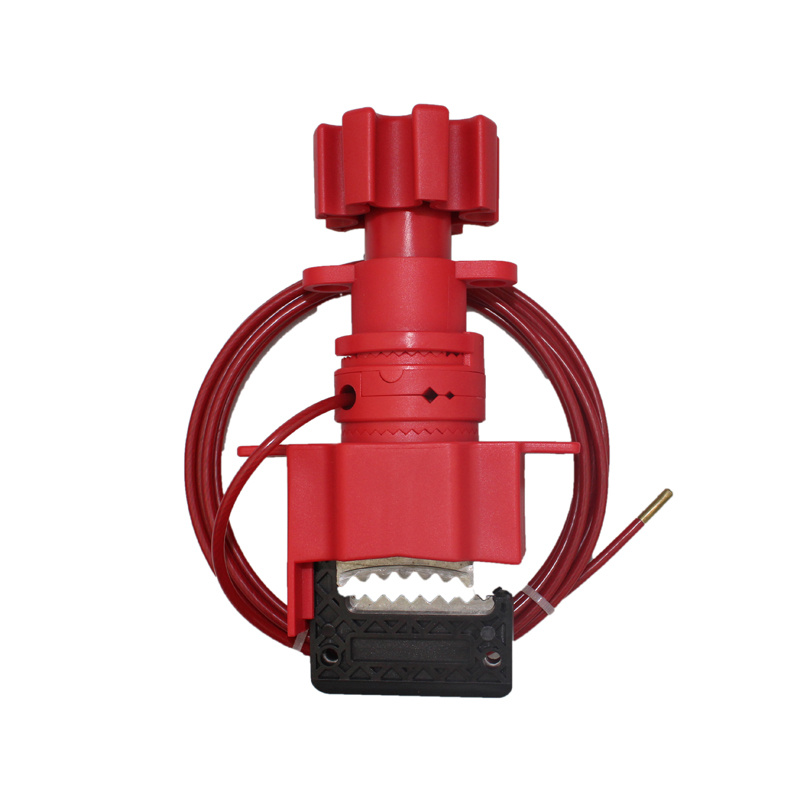

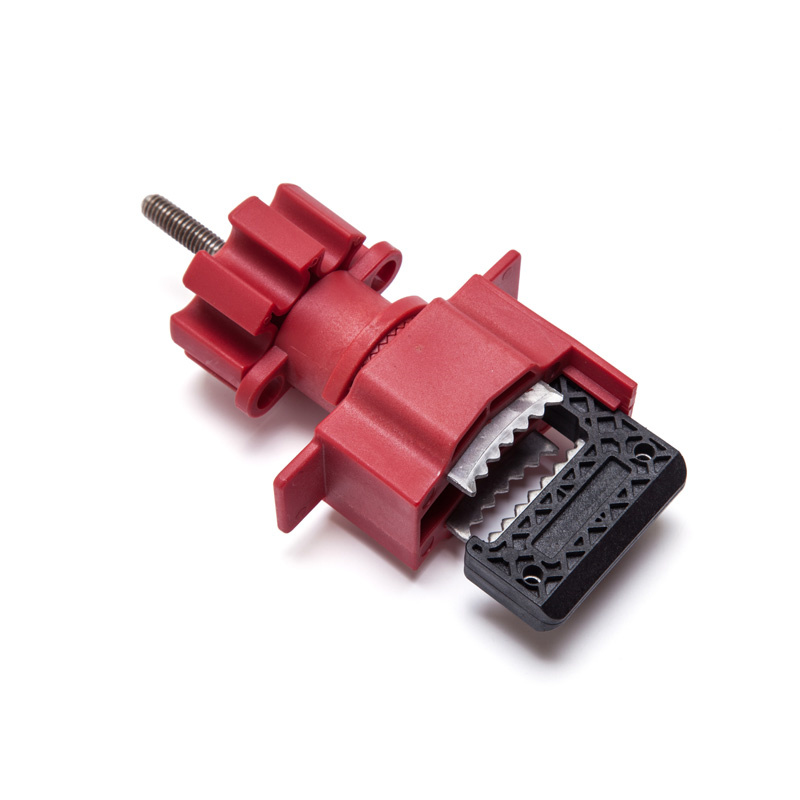

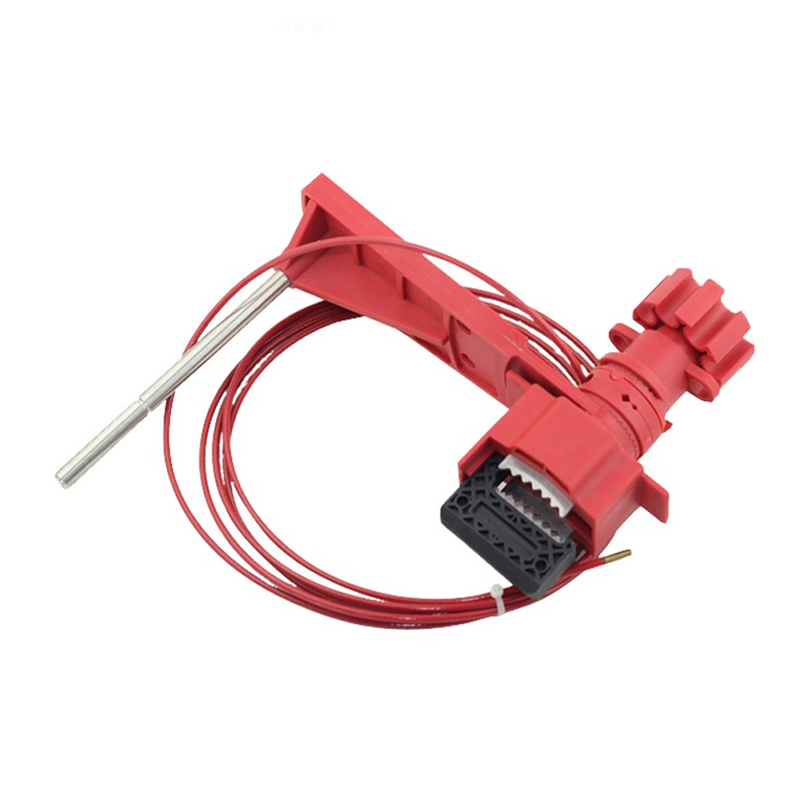

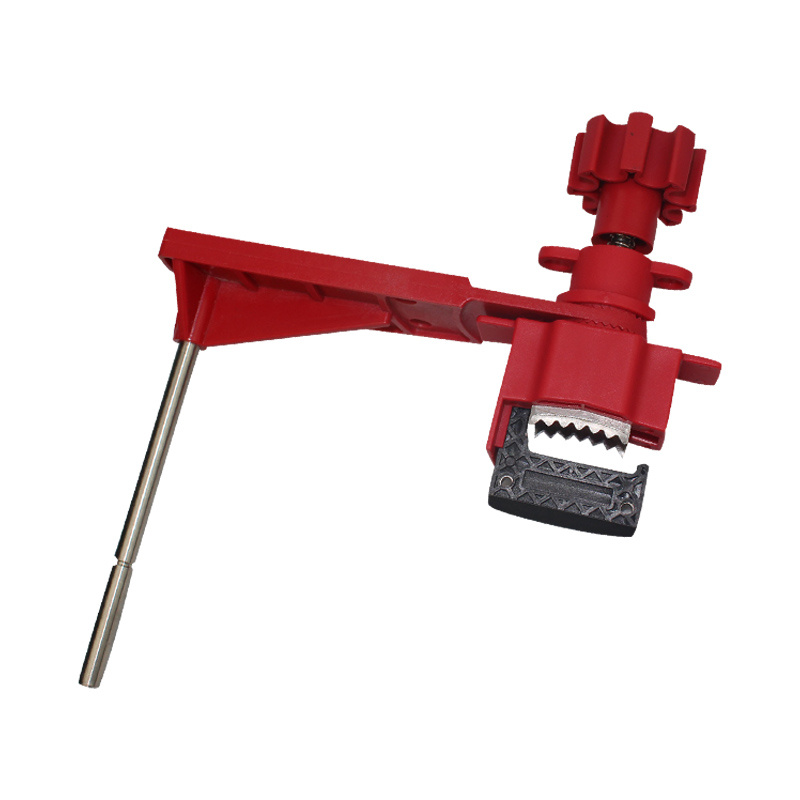

  • Universal Valve Handle Locking Device QVAND M-H12 Industrial Safety

    Universal Valve Handle Locking Device QVAND M-H12 Industrial Safety

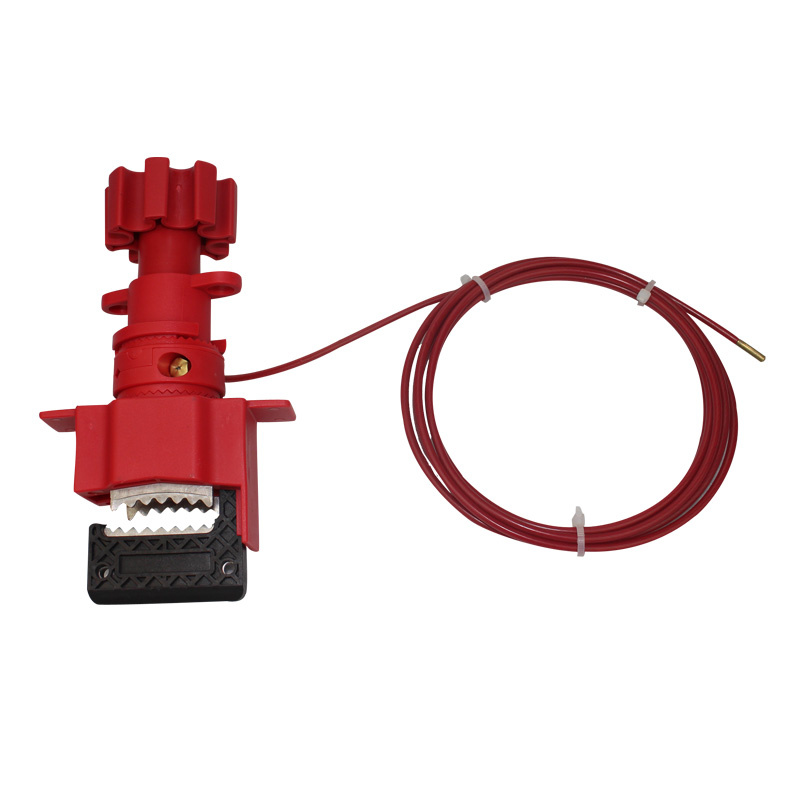

    M-H12 with coated cable-Using cable attachment for gate valves.

    Using Cable attachment for gate valves.

    Cable accessories can use 3.2mm(1/8”) PVC stainless steel metal cable set.

    1. Lock body is made of reinforced nylon PA. No deformation and fading corrosion, high temperature resistance strong and wear resistant.

    2. Easy to use.clockwise operation,tighten the screw thread suitable for various valve switches. Fixed hand wheel,clockwise operation tighten the screw thread. Two padlock holes. Stainless steel bite thread suitable for various valve switches.

    3. Perfect combination to adapt to lock various valves, suitable for gate valve, ball valve, butterfly valve and so on.

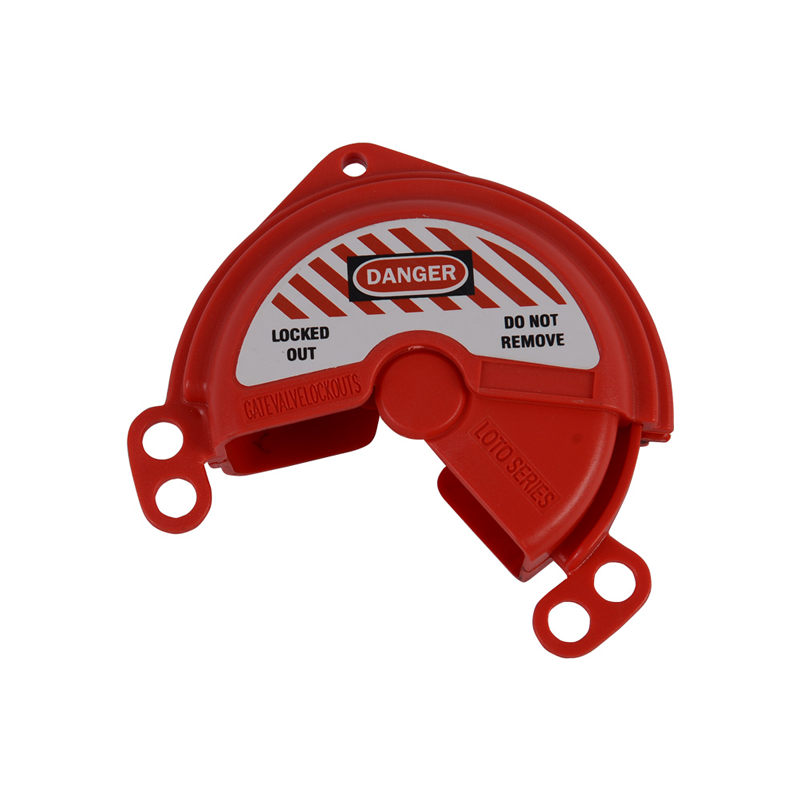

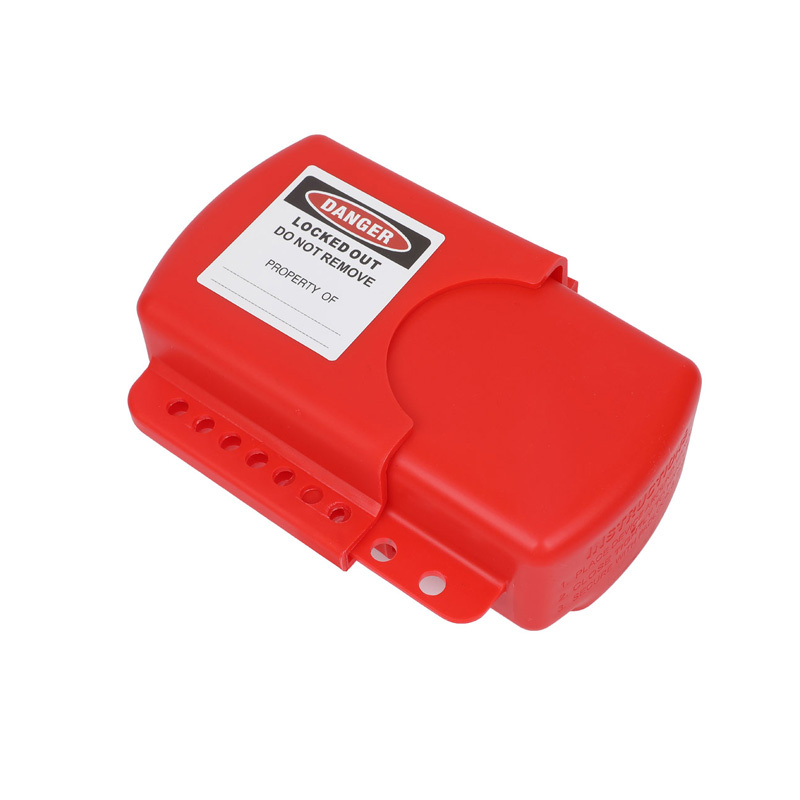

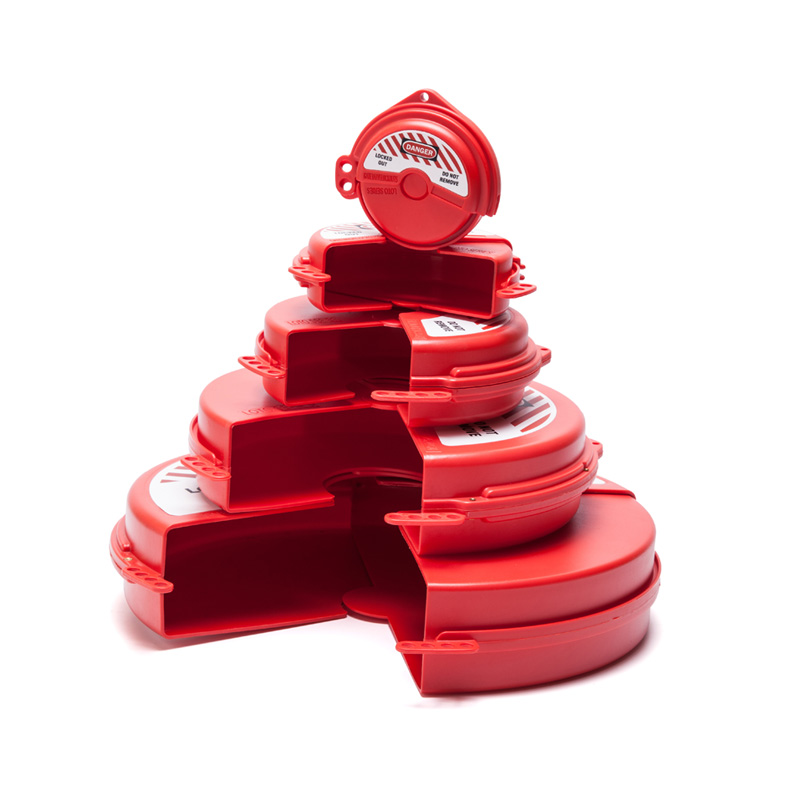

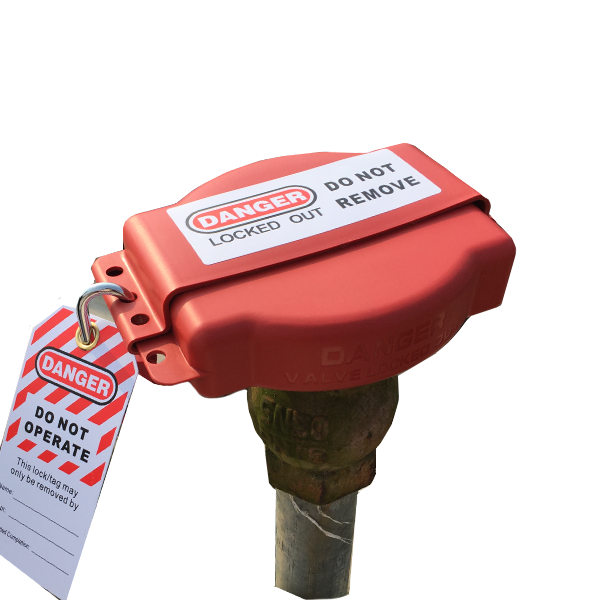

  • Gate Valve Loto Lockout QVAND M-H23 Valve Locking

    Gate Valve Loto Lockout QVAND M-H23 Valve Locking

    1. Material:Made from durable ABS,highly resistant of cracking and abrasion and supports extreme weather temperature condition.insulation withstand temperature reach to -20℃~120℃.
    2. Use multiple lockout hole, convenient for several workers to lockout, prevent accidental injury, within the scope of use, the width can be adjusted up and down to adapt to different ball valve types.

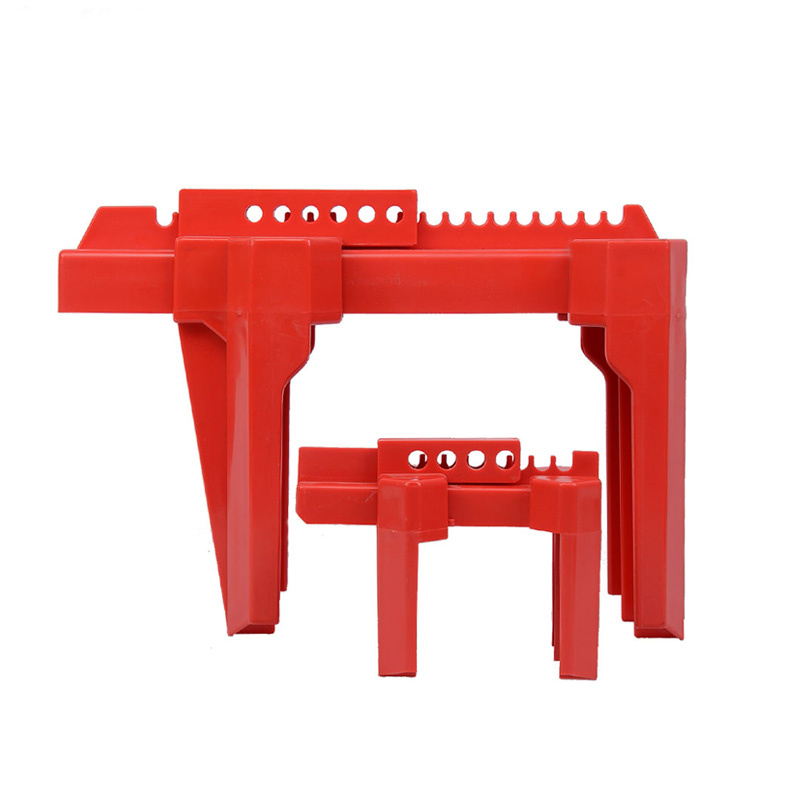

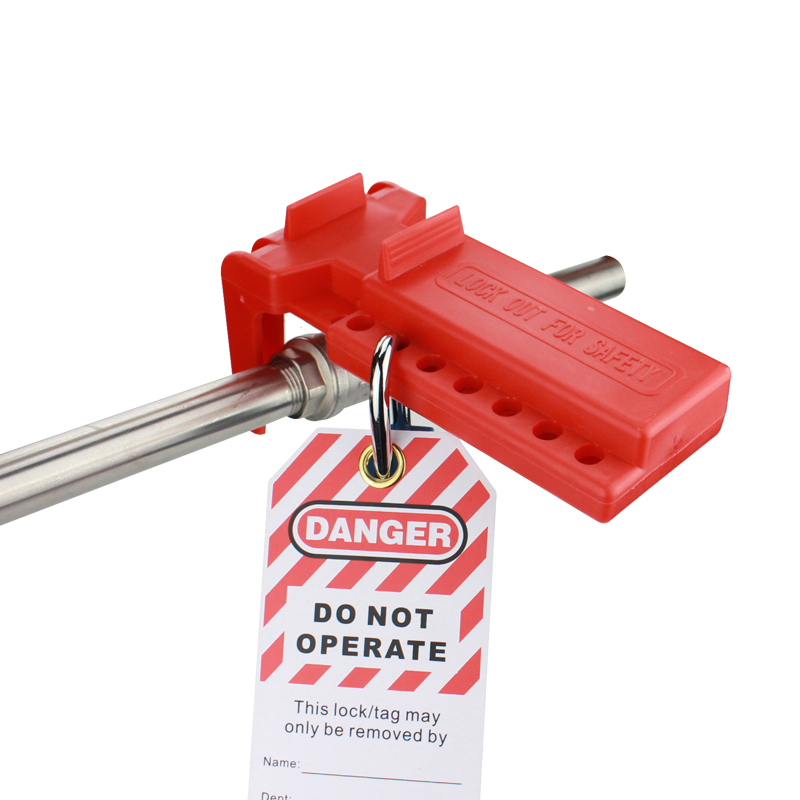

  • Ball Valve Safety Lockout QVAND M-H20  Adjustable Valve Handle Lock

    Ball Valve Safety Lockout QVAND M-H20 Adjustable Valve Handle Lock

    M-H20: Suitable for pipe diameter from 9.5mm(3/8”) to 31mm (1 1/5”).

    M-H20F: Suitable for pipe diameter from 9.5mm(3/8”) to 31mm (1 1/5”), with front and back foot board.

    M-H21: Suitable for pipe diameter from 13mm(1/2”) to70mm (2 3/4”).

    M-H21F: Suitable for pipe diameter from 13mm(1/2”) to 70mm (2 3/4”), with front and back foot board.

    M-H22: Suitable for pipe diameter from 73mm(2 4/5”) to 215mm (8 1/2”).

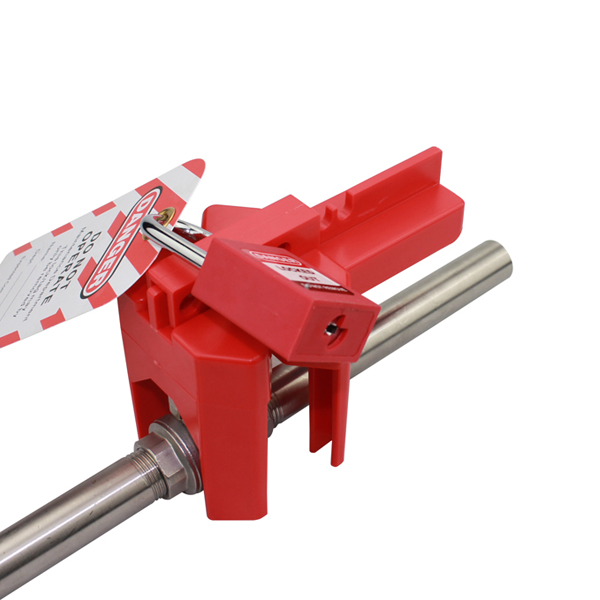

  • Ball Valve Handle Lockout QVAND M-H18 Rod Lock Safety Valve

    Ball Valve Handle Lockout QVAND M-H18 Rod Lock Safety Valve

    Multiple safety padlocks with diameter ≤9mm can be realized.

    M-H18. suitable for pipes 0.5” to 2.5” in diameter,OPEN on pipes from 0.5” to 1.25”.

    M-H18M. suitable for pipes 0.5” to 3.15” in diameter,OPEN on pipes from 0.5” to 2.5”.

    M-H19, suitable for pipes 2” to 8” in diameter.

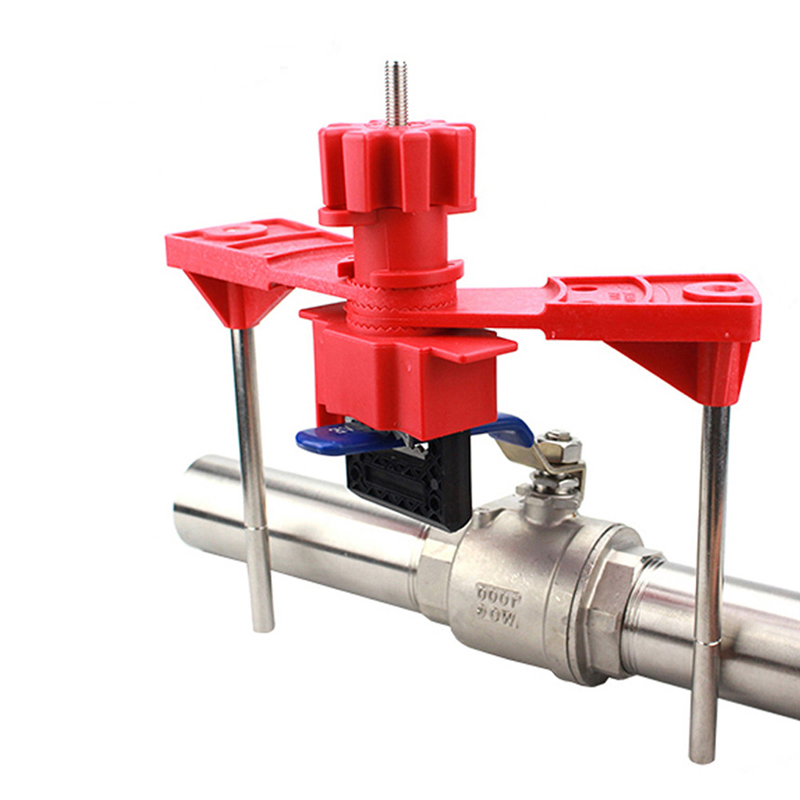

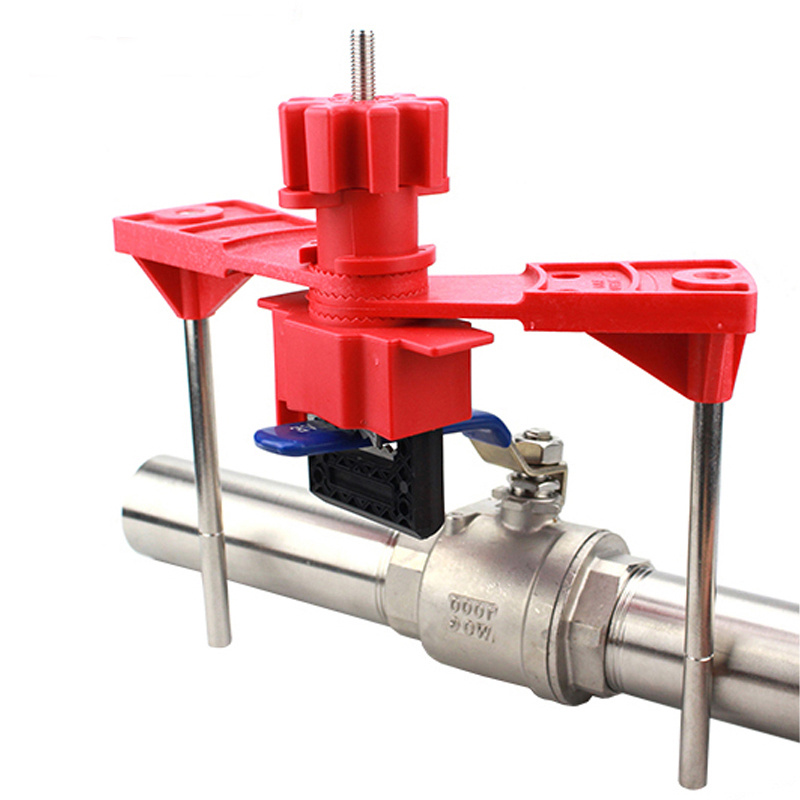

  • Adjustable Ball Valve Handle Lockout Device QVAND M-H17 with Front Back Foot Board

    Adjustable Ball Valve Handle Lockout Device QVAND M-H17 with Front Back Foot Board

    M-H17, valve rod diameter 8mm~45mm. Length 208mm, width 77mm,height 130mm. Locking range of ball valve: Open state 0.25”~1”,close state 0.25”~1.5”. Extended baffle design: Extended baffle design,effectively improving the application scope of ball valve locking state.With stall foot,it can lock some heightened and lengthened ball valve.

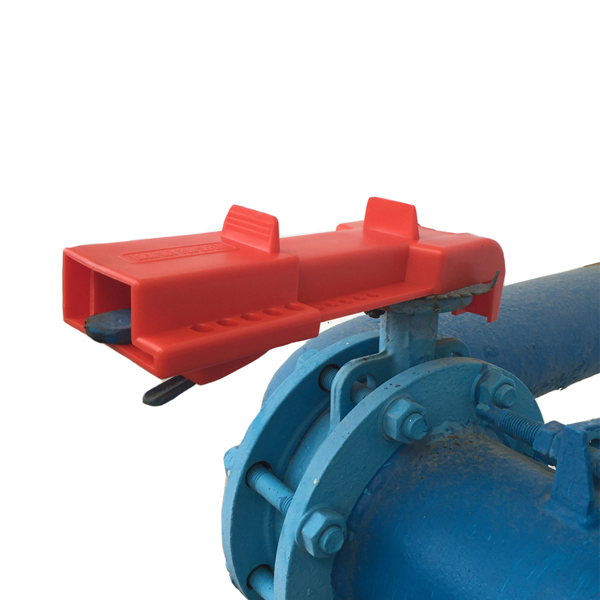

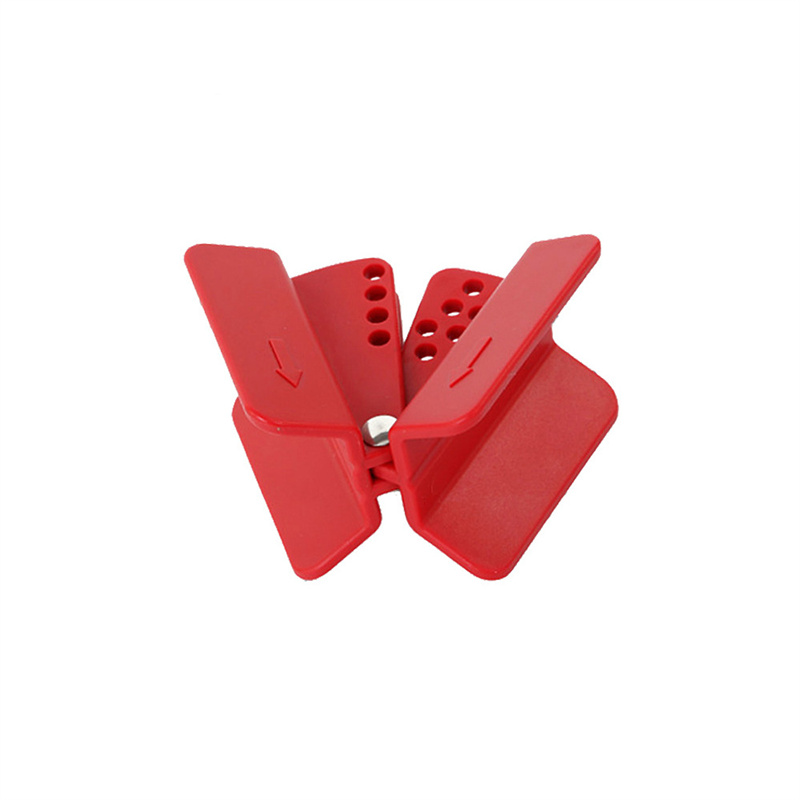

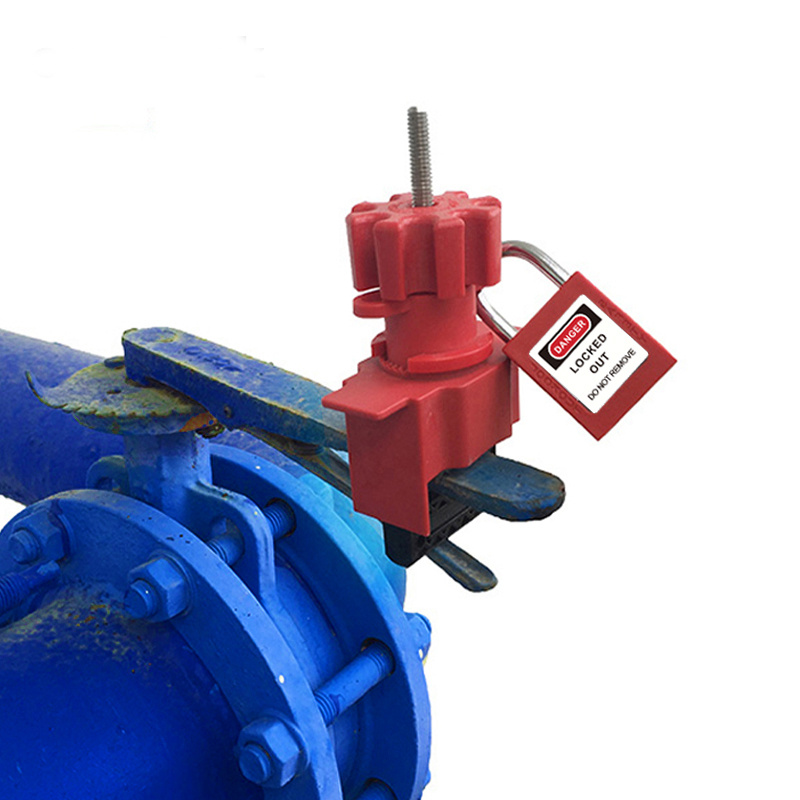

  • Butterfly Valve Lockout QVAND M-H29 Lockout Tag out Device

    Butterfly Valve Lockout QVAND M-H29 Lockout Tag out Device

    M-H29, it can adjustable angle 15°~36°.

    Used with a 4mm cable,it can lock various butterfly valve handles of different sizes.

    A) Material: Made from PA. Light weight and corrosion resistance, temperature difference resistance.
    temperature range is -57℃~177℃. It’s durable and not easy to aging, extruded resistant, anti-bending and corrosion resistant. Temperature can reach to -57℃~177℃.

  • Butterfly Universal Cable Valve Lock QVAND M-H14 Rod Lockout

    Butterfly Universal Cable Valve Lock QVAND M-H14 Rod Lockout

    a) Made from industrial grade steel and nylon.

    b) This industrial valve lockout is a modular system which enables you to lock out valves of different types and sizes. Such as large levers of valves, T-handles and other hard-to-secure mechanical devices.

    c) Max handle width 40mm (handle max thickness 28mm).

    d) Cable attachment is a 1/7″(3.5mm) rustproof sheathed metal cable.

    e) The length of cable is 2.4m, other lengths are available.

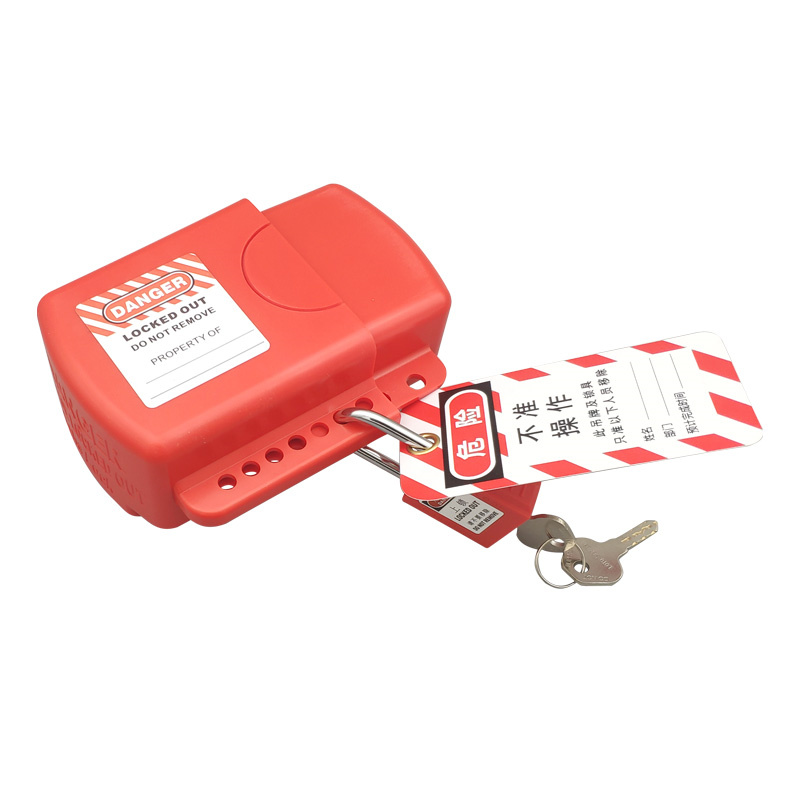

  • Universal Safety Ball Valve Loto Lockout QVAND M-H16 Clamping Lock

    Universal Safety Ball Valve Loto Lockout QVAND M-H16 Clamping Lock

    Universal Ball Valve Lockout

    a) Made from zinc alloy, surface treatment by high temperature spraying, rust proof.
    b) Designed to lock out different types of ball valve, clamp tight on handle stop to prevent handle movement.
    c) Device encloses the valve stem, with the handle removed, to make accidental reactivation virtually impossible.
    d) Accept up to 1 padlock, locking shackle max diameter 8 mm.
    e) Can be equipped together with hasps for multiple lockout usage.

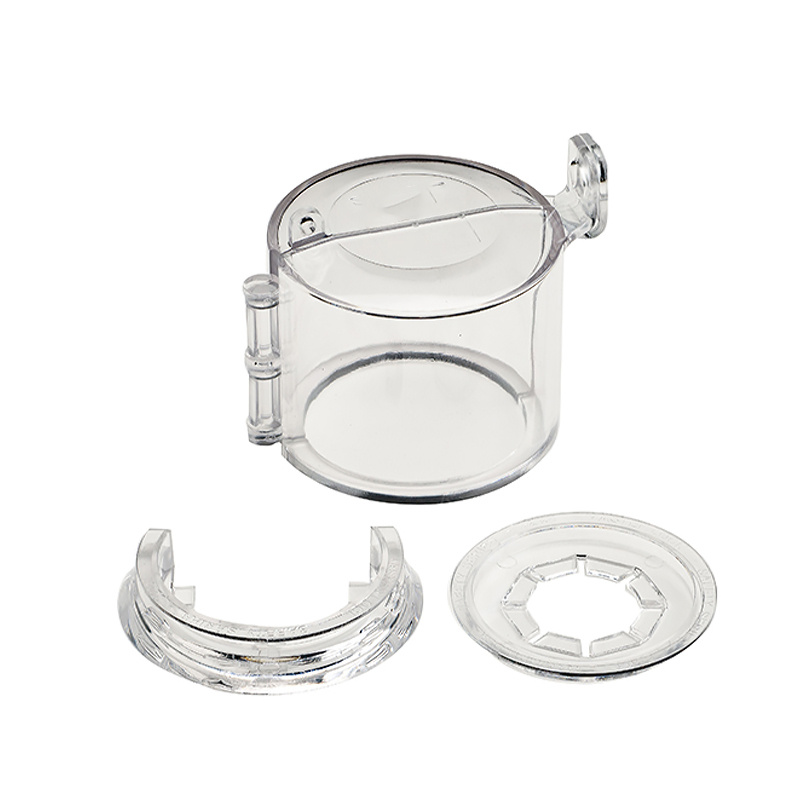

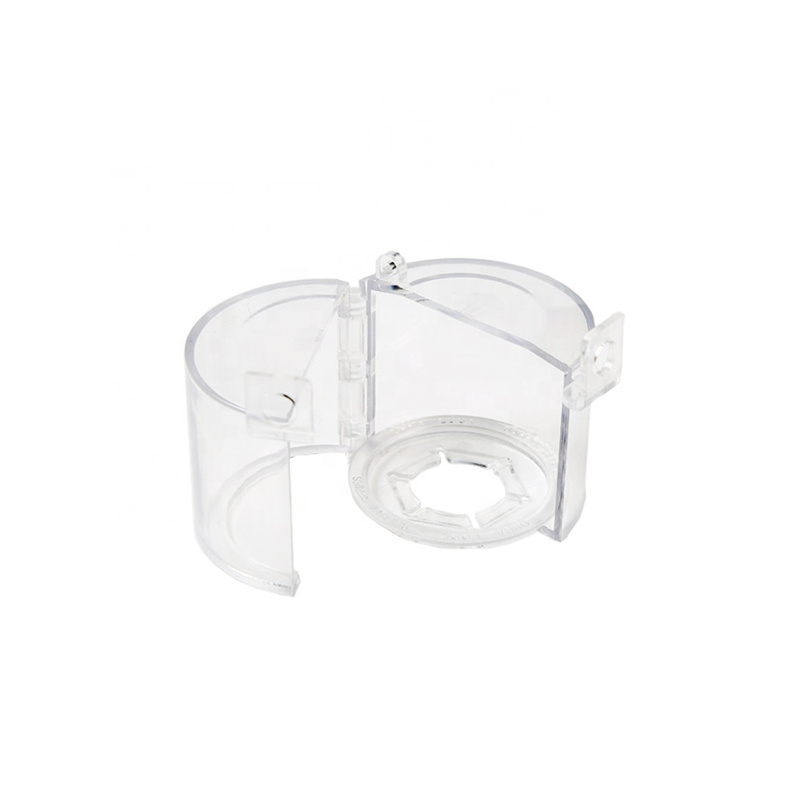

  • Transparent PC Valve Safety Lock QVAND M-H25 Safety lockout Covers

    Transparent PC Valve Safety Lock QVAND M-H25 Safety lockout Covers

    M-H25, Hole size: 32mm, 46mm.
    a) Made of transparent PC raw material, easy to realize visual management, convenient for daily lockout. Easily and clearly to see the state of switch, working temperature from -20℃ to +120℃.
    b) Easy to lock, 3M glue at the bottom, it can not be took off easily once locked.
    c) The base allows use with two semicircles to accommodate valve. Avoid accident touch.
    d) Accommodates valve up to 55mm diameter and 43mm tall.
    e) Fits 24.5mm and 32mm-46mm diameter valve.

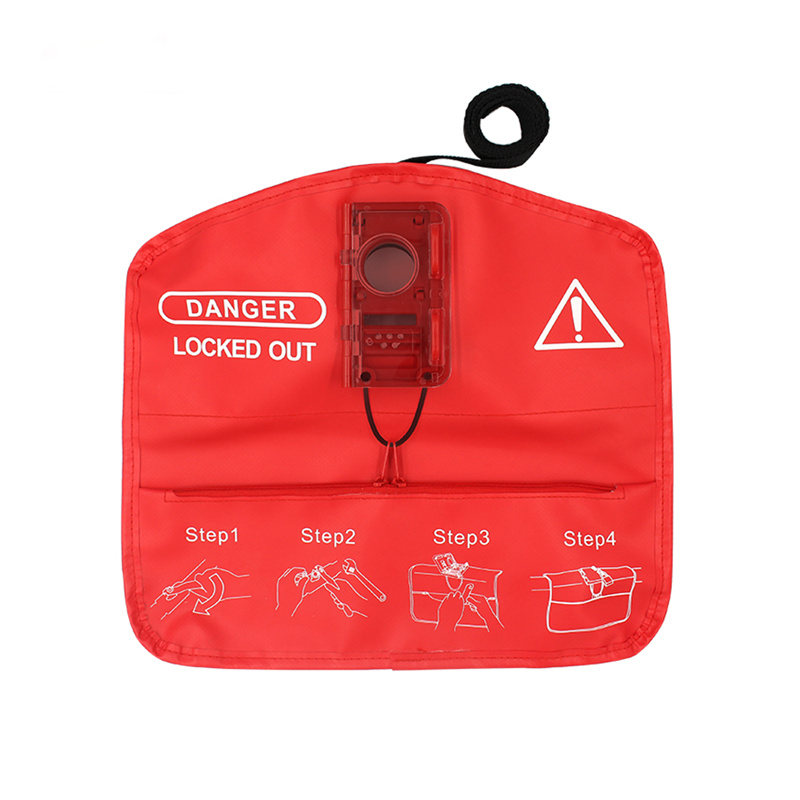

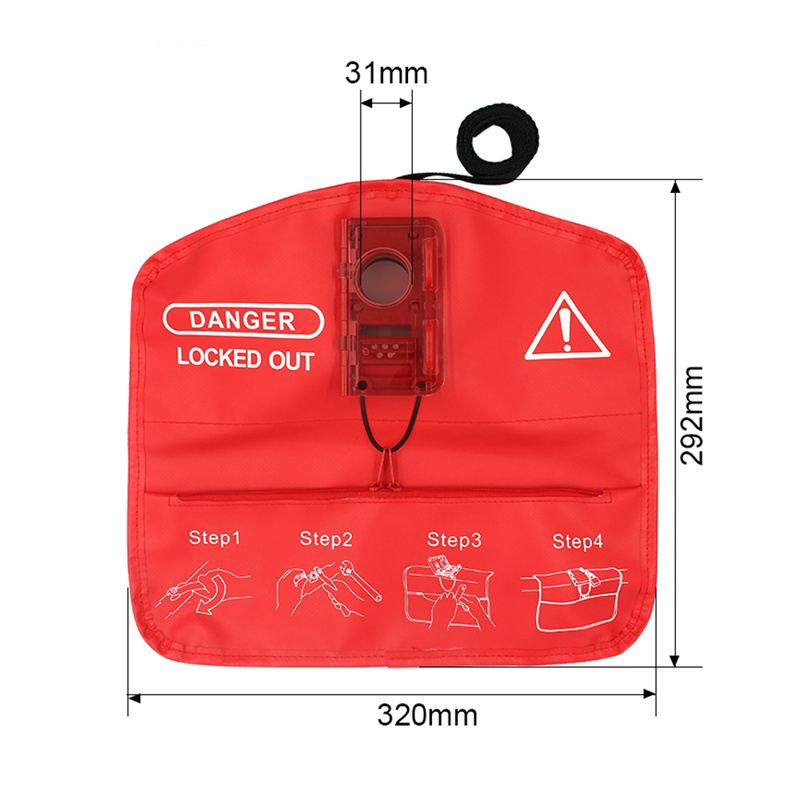

  • Flange ball valve Lockout QVAND M-H30 locking bag

    Flange ball valve Lockout QVAND M-H30 locking bag

    Adjustable Flange Valve Lockout QVAND
    valve lockout diameter:< 30mm
    a) Be made of PC wear-resistant material, which is durable in harsh environment. The lock bag comes with a handle storage bag to store the matching locks, which is convenient and efficient to use, it can prevent the locks from being lost.
    b) Easy to carry and operate, use the belt to fix the lockout bag.
    c) Fine tailoring, smooth surface, excellent workmanship.
    d) Fits virtually all types of pipe including insulated, PVC and metal.
    e) Most 4pcs padlocks can lock on at the same time.Suitable for multiple people or workgroups.
    f) Universal fit-effectively locks out all valves from 3/8in (10mm) to 4in (102mm).

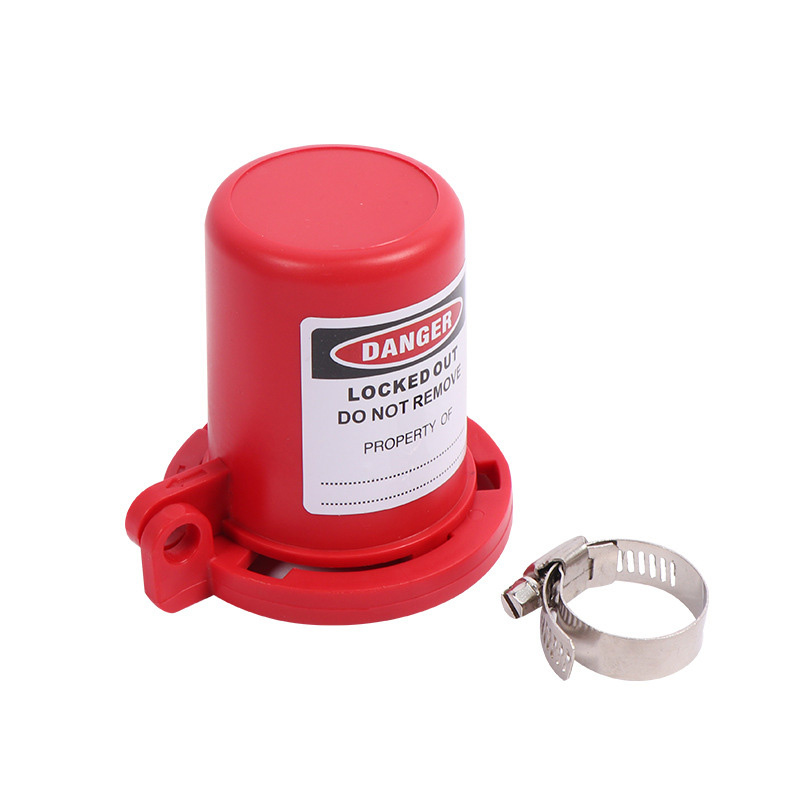

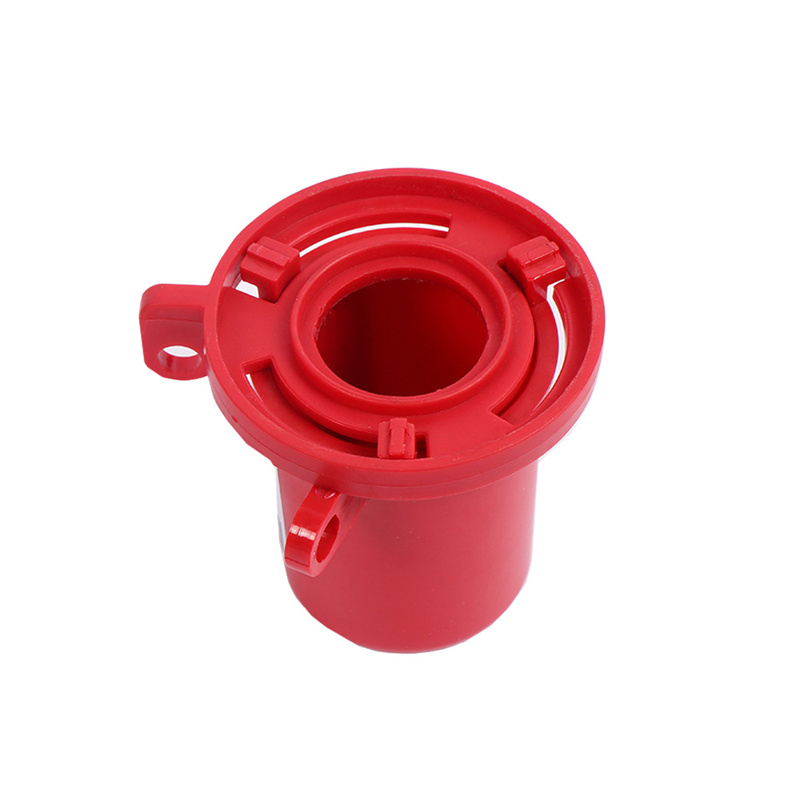

  • Plug Valve Lockout QVAND M-H41 Plug Valve Propane Tank lockout

    Plug Valve Lockout QVAND M-H41 Plug Valve Propane Tank lockout

    M-H41 suitable for valve diameter 0.375″~0.875″, bottom aperture ≤22mm.

    M-H42 suitable for valve diameter 0.938″~1.375″, bottom aperture ≤23-34mm.

    M-H43 suitable for valve diameter 1.750″~2.125″, bottom aperture ≤44-52mm.

    M-H44 suitable for valve diameter 2.187″~2.500″, bottom aperture ≤55-62mm.

    Size available, suitable for valve diameter from 23mm to 34mm.

    Durable and vandal resistant.

    Small size, easy to be carried.
